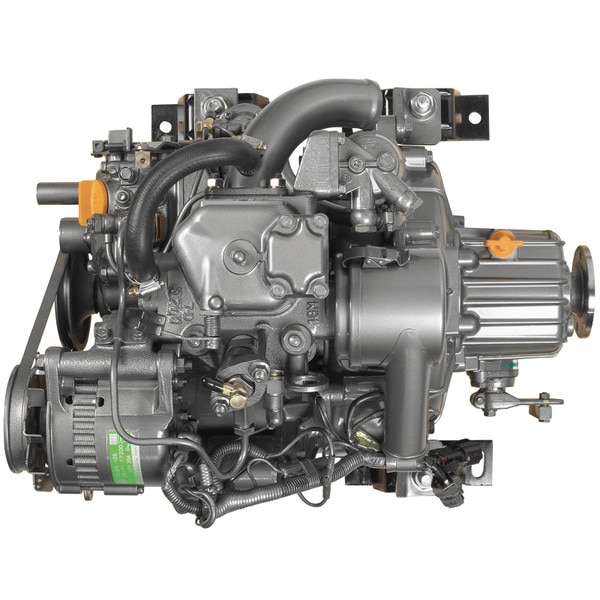

Yanmar 1GM10: Compact Diesel Power for Marine Propulsion The Yanmar 1GM10 is a renowned single-cylinder, 4-stroke diesel engine engineered for reliable inboard propulsion in small marine vessels. Introduced in 1984 by Yanmar, this compact powerhouse delivers 9 horsepower (6 kW) at 3600 RPM, providing dependable thrust for auxiliary drives and primary propulsion systems in aquatic environments. Key technical specifications underscore its efficiency and practicality. With a displacement of 318 cm³, bore of 75 mm, and stroke of 72 mm, the 1GM10 achieves a DIN 6270B-rated output of 9.1 HP at 3600 RPM, or 8.2 HP at 3400 RPM per DIN 6270A standards. It features a 3.22:1 reduction gear ratio to optimize torque delivery to the propeller shaft, seawater cooling for thermal management, and an electric start system. Measuring 547 mm in length, 410 mm in width, and 485 mm in height, the engine weighs just 76 kg (167 lbs), facilitating straightforward installation in tight engine bays. Tailored for marine rigors, the 1GM10 excels with corrosion-resistant materials and sealed components that withstand saltwater exposure and temperature fluctuations. Its seawater-cooled system ensures superior heat dissipation during extended operations, while the inboard configuration minimizes vibration and enhances vessel stability. The single-cylinder design promotes simplicity, reducing maintenance demands and operational costs in harsh offshore conditions. Performance-wise, the 4-stroke cycle delivers impressive fuel economy and lower emissions compared to 2-stroke alternatives, with accessible crankshaft and cooling ports aiding routine servicing. The reduction ratio fine-tunes power for balanced speed and thrust, making it ideal for intermittent or continuous duty cycles. This versatile engine suits a range of applications, including sailboats, fishing tenders, small yachts, and power take-off (PTO) systems for onboard generators. Whether powering a coastal cruiser or serving as auxiliary backup, the Yanmar 1GM10 embodies enduring reliability and marine-grade durability, empowering boaters with efficient, low-maintenance propulsion. (Word count: 278)
